Figure/Graphic 1: Dosiswirkungsbeziehung - Nitroprussid

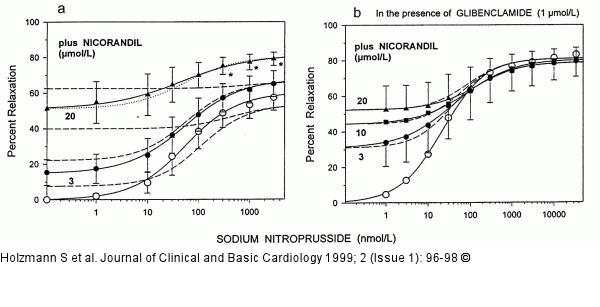

Cumulative dose-response curves (DRCs) of nitroprusside in the absence (open symbol) and presence of 3-20 micromol/L nicorandil (filled symbols), a) in the absence, b) in the presence of 1 micromol/L glibenclamide. The symbols and bars represent experimental mean values from 12 experiments and 95 % CI. Experimental DRCs are shown by solid lines, theoretical DRCs by dashed lines (dose-additivity) and dotted lines independence). For graphical clarity, the following theoretical curves are shown in a) bands of 95 % CI with upper and lower boundary of dose-additive combinations of nitroprusside in the presence of 3 and 20 micromol/L nicorandil, curve of mean independent effect of nitroprusside in the presence of 20 micromol/L nicorandil, b) means of dose-additive combinations of nitroprusside with 3, 10, and 20 micromol/L nicorandil. The effects of nicorandil alone are shown on the y-axis. Significant deviation from dose-additivity is indicated by asterics.
